International A.I. Sanitizer Catalog

Eliminator 1

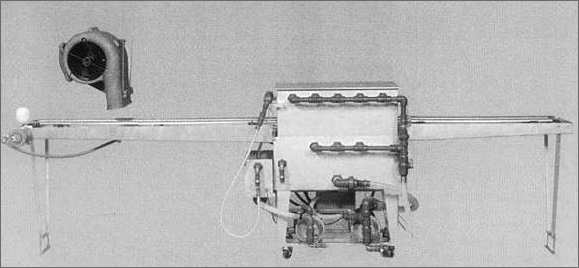

All photos show right-hand machines

• Stainless steel construction • 15,000 to 25,000 breeders

• 8,600 turkey/12,500 broiler/breeders eggs per hour

• Standard model up to 13" (15 cm) flats

• 4' incoming/6' outgoing conveyors

• Wide track available accepts flats up to 24" (26 cm) wide

• Our exclusive rear-hinged top
• Easy access

• Our exclusive top hinge
• Easy access

•  Control panel
•  Mount where you please
•  Uses relay logic that is very simple and very reliable
•  Pilot lights on all functions that diagnose outputs and operations

Standard Features

• Stainless steel TEFC pumps
• Stainless steel heaters
• Digital controls • High alarm
• Low alarm
• Emergency "shutdown" switch
• TEFC conveyor motor
• Hinged back top
• 3/4" stainless conveyor shafting
• No-lube bearings
• Threaded plumbing on all valves and unions
• Schedule 80 plumbing
• Waterproof NEMA 4X electrical on main body
• Total water filtration
• Quat spray splash guard
• Conveyor stop switch
• Spare float switch and thermocouple
• Complete set of spare fuses
• Conveyor drains
• Leveling pads on main body and conveyors
• Circulated quat for heated quat at the nozzle
• Guides for flats to go directly under quat nozzles
• Quat nozzles are spaced according to type of flat used
• Nozzles line up directly over eggs
• Quat spray bar quickly removes for replacement to other configuration or cleaning
• Electrical: 220 volt, 60Hz, draws 62 amps; 3-phase and 50Hz available

Eliminator 1 Options

• 6' or 8' out/in conveyor
• Blower/drier
• NEMA 4X digital covers
• Quick-change wash nozzles
• Wide track system 22" (57 cm) wide chain
• Longer out/in conveyors (special)
• Left hand load

Warranty

Digital controllers — 3 years; all other components carry a full 1-year warranty from delivery date. All warranty items shipped freight prepaid next day air, Federal Express, or by other means to have replacement item delivered to customer by the next business day ( USA ); Saturday next-day air service included.
